Acoustic Louvers
Model 142

Acoustic Louvers - Model 142
Standard Grade Construction

Applications
  • For moderate noise attenuation on low velocity/large area building, enclosure and plenum openings
Benefits
  • Designed to reduce noise while minimizing the ingress of water
  • Well suited to applications where space is limited, making the use of standard silencers impractical
  • Low face velocities ensure minimum pressure drop
Accessories and design options
  • Mounting flange for surface mounting
  • Galvanized and stainless steel mesh bird, insect and safety screens
  • Chevron designs available

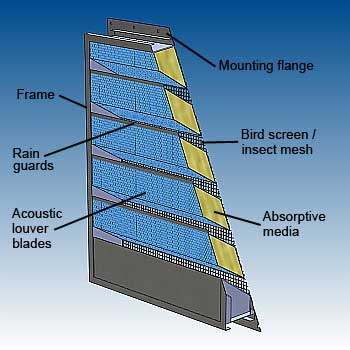

Acoustic louver features
features-img-5

For other customized silencer designs, please contact us and we will be happy to assist you.

Request a Quote

Product details

Flows

Up to 500 acfm/ft2

Pressures

0.5" wg maximum

Temperatures

Up to 250° F

Model depths:

6", 12" and 24"

Sizes

From 12" X 12" to 96" X 96" (one piece)

Unit weight

1,000 lbs maximum

Materials

Mill galvanized (standard). Stainless steels and aluminum available

Construction

20 ga to 16 ga lock formed casings with 22 ga acoustic baffles

Paint finishes:

Alkyd and enamel finishes available
