Reactive Mufflers
Model 333

Reactive Mufflers - Model 333
Industrial Grade, All Welded Construction

Applications
  • The standard exhaust muffler for use on all internal combustion engines
  • Intake and exhaust silencers on PD blowers operating below their critical speed
  • Intake and exhaust silencers on reciprocating compressors
  • Other applications where low frequency noise control is needed
Design features
  • Four multi-chamber reactive muffler designs are available; Types A, B, C and D (equivalent to Industrial, Residential, Critical and Hospital grades)
  • Tuned reactive chambers and perforated tubes to remove low frequency pulsations and noise
  • End intake and exhaust, as well as side intake and exhaust connections available

For other customized silencer designs, please contact us and we will be happy to assist you.

Accessories
  • Mounting brackets, support legs, saddles and feet for muffler installation
  • Tail pipes, rain cowls and caps
  • Access panels for inspection of internals
  • Companion flanges and expansion joints

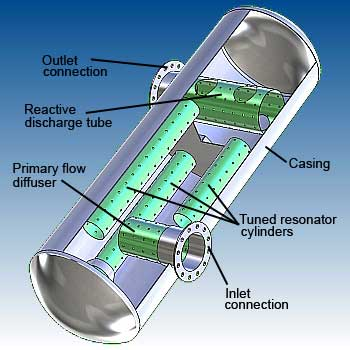

Reactive muffler features
features-img-13

For other customized silencer designs, please contact us and we will be happy to assist you.

Request a Quote

Product details

Flows

Up to 60,000 acfm (standard)

Pressures

Up to 120" wg

Temperatures

Up to 1,200° F

Sizes

From 3" ID to 30" ID (standard)

Larger diameters available

Unit weight

Up to 25,000 lbs

Materials

Carbon, stainless and corten steels

Construction

12 ga to 3/8" casings with 12 ga internals designed for thermal expansion

Paint finishes:

High heat aluminum or black, as well as a variety of low temperature paints
