Rectangular PTFE Flexible Connections - Model 515 and 516
Industrial Grade, All Welded Construction

Applications
  • Fan inlets and outlets
  • Pressure blower inlets and outlets
  • Scrubber inlets and outlets
  • Dryer outlets
  • Stack inlets
  • Process ductwork
Model 515 rectangular PTFE flexible connections
  • Tough, 30 mil, 32 oz/sq.yd, PTFE flex membrane resistant to virtually all chemical fumes and capable of operating up to 575° F
  • Good for airstream flows to 6,000 fpm and pressures from -30" wg to +120" wg
  • All welded, matched and drilled flanges
  • Backing bars fastened in place with zinc plated hardware
Model 516 rectangular PTFE flexible connections
  • Identical construction to Model 515 flexible connections, with an aerodynamically designed, protective metal flow liner
  • Good for airstream flows over 6,000 fpm and pressures from -120" wg to +120" wg (with a flow liner)
  • Double deflectors are also available for extra flow protection and noise reduction
Rectangular PTFE flexible connections

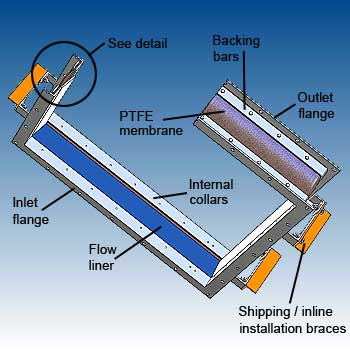

Rectangular PTFE flexible connections features image
Design options
  • Flexible connections incorporating a special PTFE flex membrane with an insulated laminate for temperatures to 750° F
  • Customized thermal/pillowed flexible connections for temperatures over 750° F

For other flexible connection designs, please contact us and we will be happy to assist you.

Request a Quote

PRODUCT DETAILS

Operating temperatures

Up to 575° F (standard)

Up to 750° F (laminate design)

Over 750° F (pillowed design)

Flows

Up to 6,000 fpm (Model 515)

Over 6,000 fpm (Model 516)

Pressures

-30" wg to +120" wg (Model 515)

-120" wg to +120" wg (Model 516)

Sizes

From 12" X 12" inside to 120" X 120"

inside (standard) - Larger sizes available

Flange-to-flange length

8" for flanges less than 4"

10" for flanges 4" and larger

Lateral and axial movement

+/- 0.5"

Unit weight

Up to 700 lbs (standard sizes)

Materials

Carbon steel flanges, backing bars and flow liner (if supplied), zinc plated backing bar hardware and PTFE flex membrane


Stainless steel flanges, backing bars, flow liners and hardware available


Galvanized construction also available

Paint finishes:

Alkyd, enamel, high heat, inorganic zinc, epoxy and polyurethane
